Jirous Sector / Panel antenna JPC-13 Duplex MIMO 5GHz

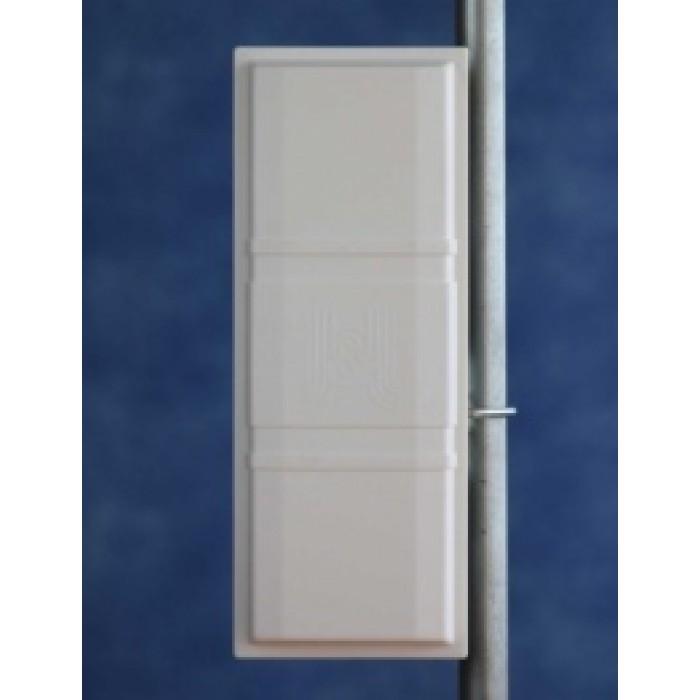

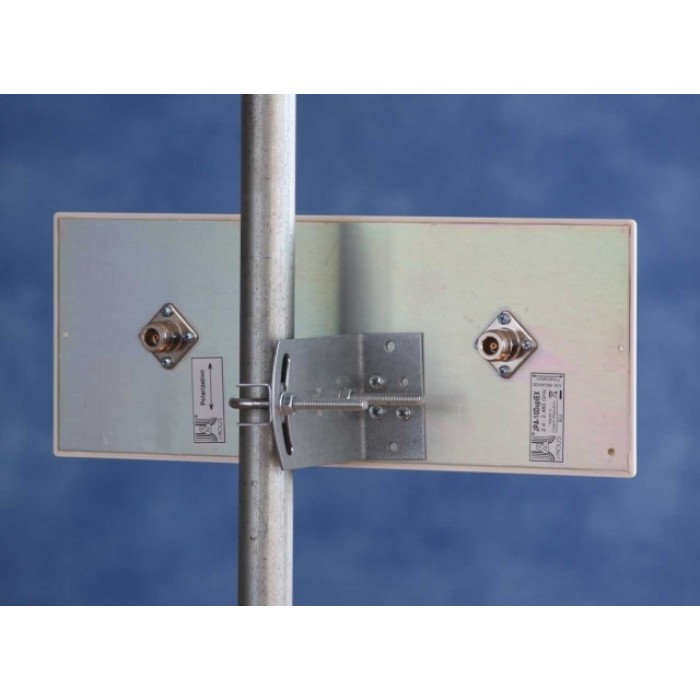

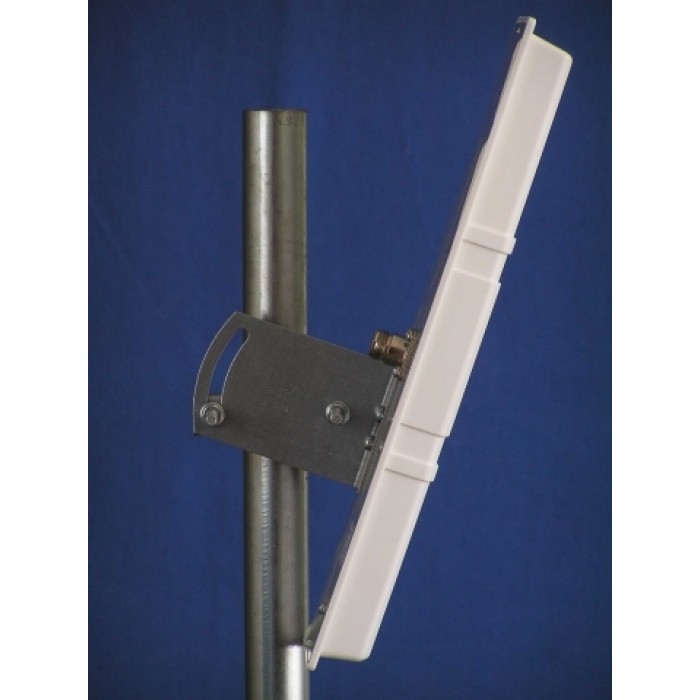

Panel antenna JPC-13 Duplex – MIMO 5GHz JPC-13 Duplex Diagram JPC-13 Plane EJPC-13 Plane H Usage: outdoor and indoor usage client antenna for short distance link point-point for very short distance you can count attainable distance from section of calculation Technical parameters Frequency range 5,15 – 5,85 GHz Gain 12 dBi ±0,6 VSWR ≤ 1,5 Sidelobe level -15 dB Front to back ratio ≥ 38 dB Beamwith-3 dB 30° Connector N – Female Size 124 x 326 x 25 mm Polarization horizontal and vertical Instalation for mast ø 19 – 54 mm Cover UV steady plastic ABS Back Sheet metal from aluminium alloy + galvanic coating + baking colour More fotos JPC-13 DuplexJPC-13 DuplexJPC-13 DuplexJPC-13 DuplexJPC-13 Duplex
