Description

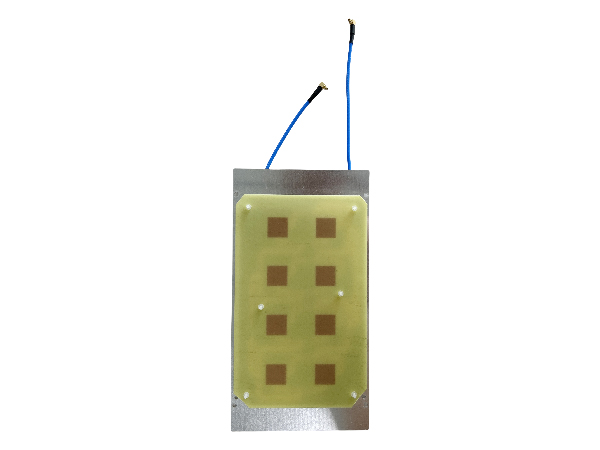

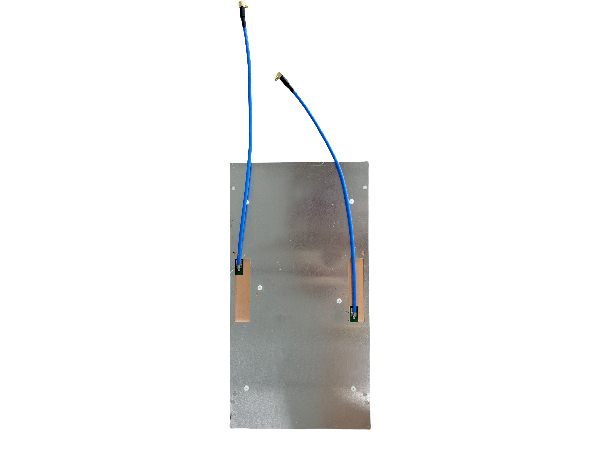

This antenna array is designed for 6GHz applications and can be easily built-in portable devices with MHF processes. It has excellent stability and sensitivity to consistently provide high signal reception efficiency.
| Electrical | |
| Frequency range | 5.9~7.3GHz |
| Gain | 16.5dBi |
| Polarization | Dual, Vertical & Horizontal |
| VSWR,max | 2.0:1 |
| 3 dB Beam-Width, H-Plane, typ. | 30° |
| 3 dB Beam-Width, E-Plane, typ. | 30° |
| Input power max | 10W |
| Port to port isolation,min | 30db |
| Input impedance | 50ohm |
| Mechanical | |
| Dimensions(HxWxD) | 120x105x10mm |
| Weight | |
| Connector | 2xMMCX /uf.l connectors optional with higher MOQ/ |
| Environmental | |
| Storage temperature | -40°C ~85°C |
| Storage temperature | -40°C ~75°C |
